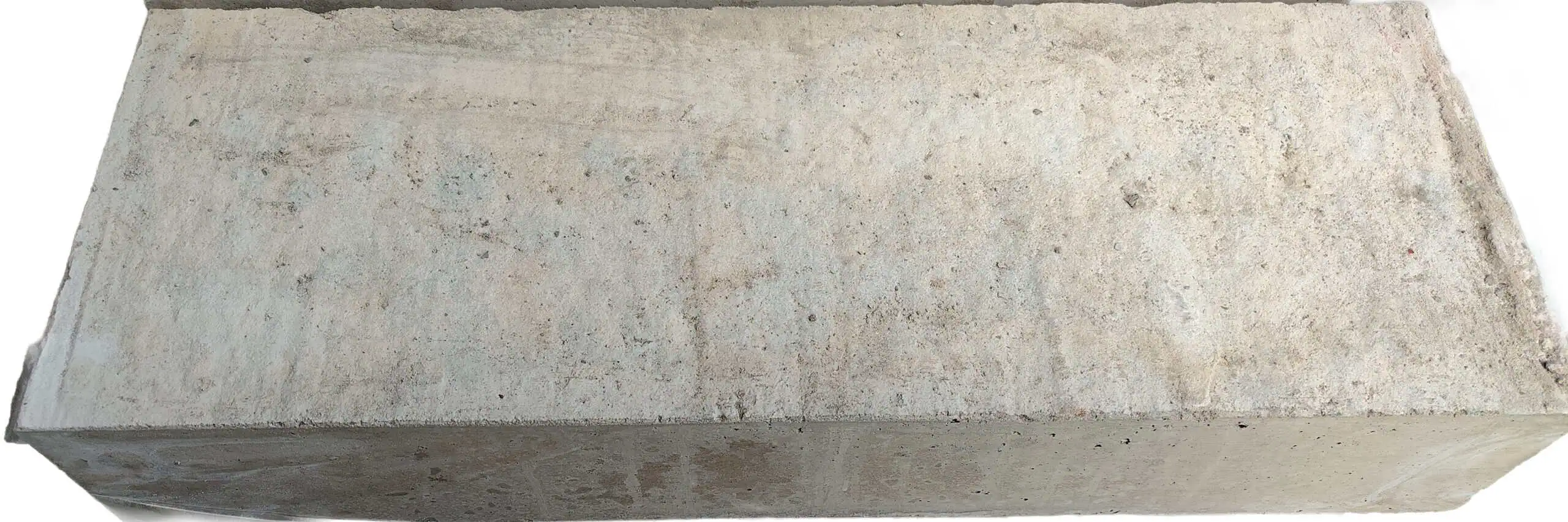

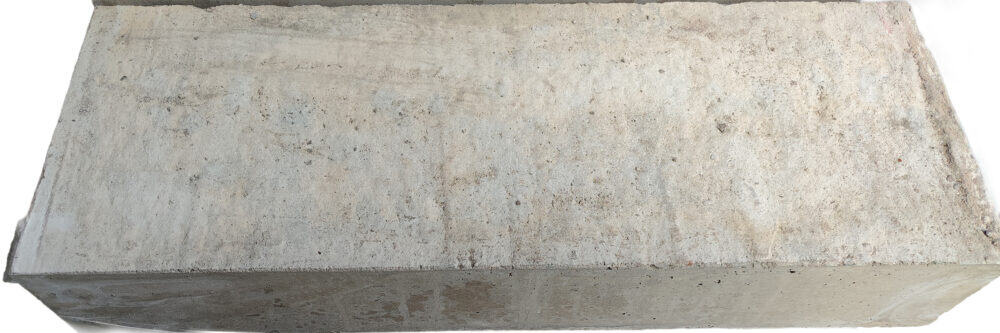

Concrete Padstone 600mm x 215mm x 102mm
The Concrete Padstone 600mm x 215mm x 102mm is a substantial, high-strength precast concrete unit designed to provide a strong and stable bearing beneath structural beams and lintels. Its extended length and wide bearing surface help distribute concentrated structural loads across a larger section of supporting brickwork or blockwork.
Steel beams and structural lintels may carry considerable weight from floors, roofs, walls and other elements of a building. These forces are transferred into the masonry through the bearing points at each end of the beam.
Ordinary bricks and standard building blocks may not always be suitable for accepting this concentrated pressure directly. A correctly specified concrete padstone creates a stronger intermediate bearing, helping transfer the load more effectively into the supporting wall.
Measuring 600mm long, 215mm wide and 102mm high, this padstone is suited to structural details requiring a large bearing footprint with a relatively low profile.
What is this concrete padstone used for?
Precast concrete padstones are used throughout residential, commercial, new-build and refurbishment projects. Typical applications include:
- Supporting structural steel beams
- Providing bearings beneath concrete lintels
- Supporting steel lintels where specified
- Creating large structural openings
- Load-bearing wall alterations
- Residential extensions
- Property renovations and conversions
- New-build construction
- Commercial and industrial masonry projects
- Creating substantial bearing points within masonry walls
A padstone is a structural component and should not be used as a general replacement for an ordinary concrete block. Its dimensions, position and orientation must form part of an approved structural design.
Product dimensions
The nominal dimensions are:
- Length: 600mm
- Width: 215mm
- Height: 102mm
- Approximate imperial size: 24″ x 9″ x 4″
- Material: High-strength precast concrete
- Product type: Structural concrete padstone
The 600mm length provides an extended load-distribution area, while the 215mm width creates a broad bearing surface. Its 102mm height makes it lower in profile than deeper 140mm or 215mm padstone formats.
These dimensions alone do not confirm whether the product is appropriate for a particular application. Suitability depends on the imposed structural load, beam reaction, required bearing area, masonry strength and overall wall construction.
High-strength precast construction
This padstone is manufactured from dense, high-strength precast concrete. Its solid construction provides a stronger bearing surface than ordinary bricks or standard masonry blocks and helps it withstand concentrated structural loading.
Factory-controlled production also helps provide consistent dimensions and concrete performance. The padstone arrives ready to incorporate into the masonry, avoiding the need to form and cast an individual concrete bearing on site.
Practical advantages include:
- No on-site concrete casting required
- No individual shuttering or formwork needed
- Reduced preparation and curing delays
- Consistent factory-manufactured dimensions
- Strong and durable concrete construction
- Ready for incorporation into suitable masonry
- Suitable for permanent structural applications
- Useful for new-build and refurbishment projects
Although the padstone is supplied as a precast unit, its bedding mortar and the surrounding masonry must still develop adequate strength before the full structural load is applied.
Selecting the correct padstone
Padstone selection must be based on the structural requirements of the project. Relevant factors include the weight carried by the beam, the reaction at each bearing point, the available end bearing and the compressive strength of the supporting masonry.
This 600mm x 215mm x 102mm padstone should only be used where these dimensions have been specified or approved by a qualified structural engineer or another suitably competent professional.
Do not select a padstone solely because its dimensions match the width of the wall or available opening. A product that physically fits may not provide the load distribution required by the structural calculations.
The padstone should not be substituted for a different size without professional approval. Always check the structural drawings and calculations before ordering or beginning installation.
Installation guidance
The supporting brickwork or blockwork must be sound, level and capable of accepting the transferred structural load. Install the padstone on a continuous, even bed of suitable mortar so its entire underside is properly supported.
Position the unit level and in the orientation shown on the approved structural drawings. The beam or lintel should sit correctly on the padstone and achieve the specified end-bearing distance.
Due to its substantial dimensions and weight, an appropriate manual-handling assessment should be carried out before moving or installing the product. Mechanical lifting assistance may be required.
Inspect the unit before use. Minor surface imperfections are normal, but a padstone with severe cracks or damage that could affect its structural integrity should not be installed without professional assessment.
Do not cut, drill or modify the padstone unless the alteration has been expressly approved by the structural engineer.
Colour, finish and size variations
Precast concrete is manufactured from cement, water and naturally sourced aggregates. Variations in raw materials, production batches and curing conditions may affect the finished appearance.
Please note: Colours and sizes may vary slightly due to the manufacturing process. Product photographs are representative, and the item supplied may differ slightly in appearance.
Minor shade variations, small air pockets, casting marks and slight edge irregularities are normal characteristics of precast concrete. These cosmetic differences do not necessarily indicate a product fault, provided the unit remains structurally sound and within the manufacturer’s permitted tolerances.
As padstones are functional structural components rather than decorative products, exact colour and finish matching cannot be guaranteed.
Key benefits
- High-strength precast concrete construction
- Substantial 600mm x 215mm bearing footprint
- Helps distribute concentrated structural loads
- Suitable for supporting specified beams and lintels
- Ready to install without casting concrete on site
- Suitable for new-build and renovation projects
- Low-profile 102mm height
- Consistent factory-manufactured component
- Suitable for residential and commercial construction
- Creates a strong, level structural bearing
The Concrete Padstone 600mm x 215mm x 102mm provides a substantial bearing surface for demanding structural masonry applications. Always confirm its dimensions, orientation and installation requirements against the structural engineer’s drawings and calculations before ordering or fitting the product.
