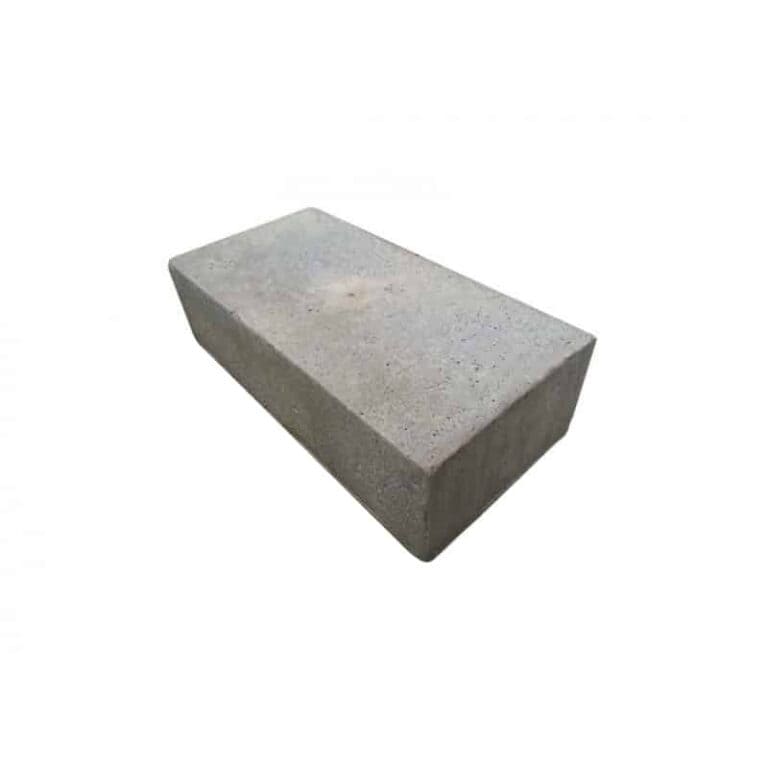

Concrete Padstone 440mm x 215mm x 215mm – PAD09
The Concrete Padstone 440mm x 215mm x 215mm, commonly referred to as PAD09, is a substantial precast concrete bearing unit used beneath structural beams and lintels. Its high-strength, dense concrete construction helps spread concentrated loads into the supporting brickwork or blockwork below.
This padstone is frequently specified for structural openings, extensions, renovations and new-build projects where a steel beam or lintel requires a strong and stable masonry bearing. By distributing the imposed load over a wider area, the padstone helps protect the surrounding masonry from excessive localised pressure.
Measuring 440mm long, 215mm wide and 215mm high, PAD09 provides both an extended bearing length and a full 215mm depth. Its substantial dimensions make it suitable for demanding applications where this particular padstone size has been confirmed by the structural design.
Why are padstones required?
Steel beams and structural lintels often carry considerable loads from the building above. These forces are transferred into the supporting walls through relatively small bearing points at each end of the beam.
Standard bricks or blocks may not always have sufficient strength to accept this concentrated loading directly. A high-strength concrete padstone is therefore installed to create a stronger bearing and distribute the load across a larger section of masonry.
Padstones may be used for:
- Structural steel beam bearings
- Supporting concrete and steel lintels
- Load-bearing wall alterations
- Installing beams during extensions
- Creating new structural openings
- Residential and commercial construction
- Supporting structural elements within masonry walls

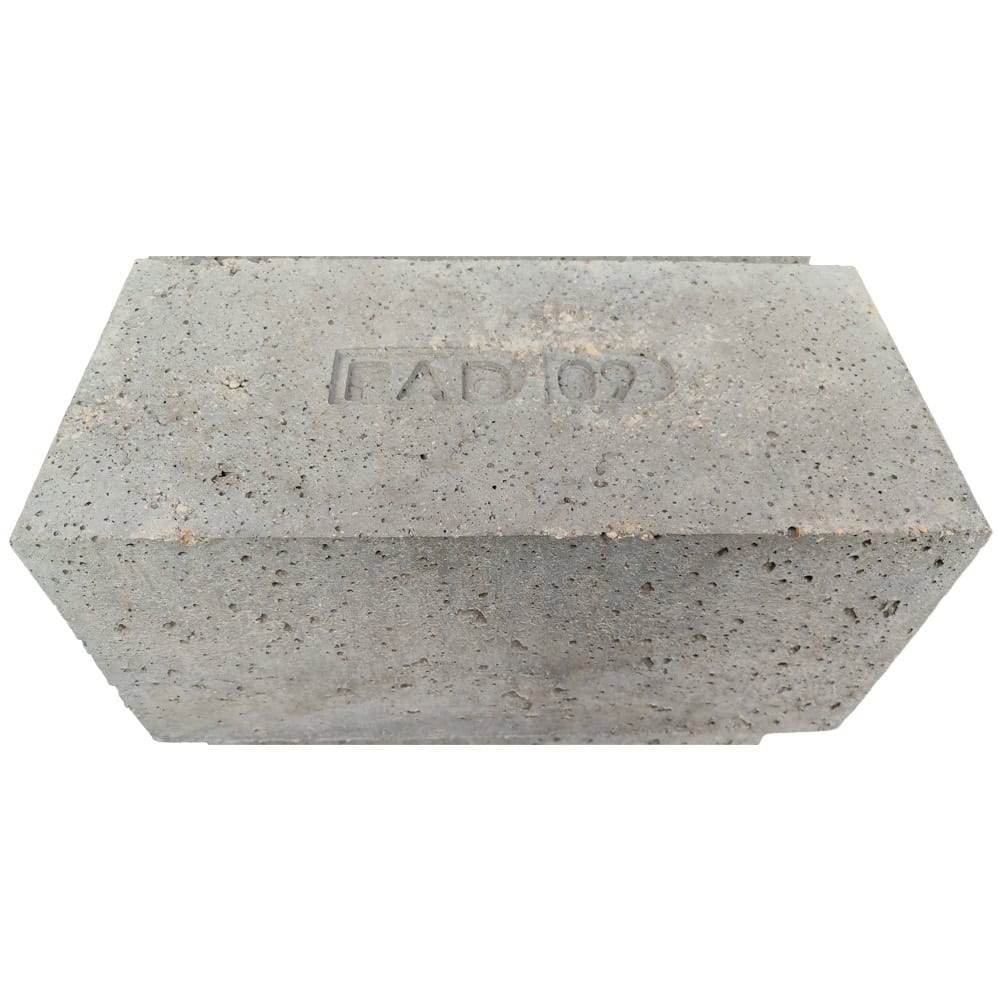

PAD09 dimensions
The nominal product dimensions are:
- Length: 440mm
- Width: 215mm
- Height: 215mm
- Product reference: PAD09
- Approximate imperial size: 18″ x 9″ x 9″
- Material: High-strength precast concrete
The combination of a 440mm length and 215mm width creates a generous bearing area. Its 215mm height provides a deeper concrete section than lower-profile padstones such as PAD12.
PAD09 is a heavy concrete component. Appropriate handling procedures and mechanical assistance should be considered when moving or positioning the unit.
Ready-made structural bearing
Using a factory-manufactured padstone avoids the need to form and cast a concrete bearing on site. There is no requirement to construct shuttering or wait for site-mixed concrete to develop the required strength before work can continue.
Controlled precast manufacture also helps provide consistent product dimensions and concrete performance. Once delivered, the padstone can be incorporated into the supporting masonry in accordance with the project drawings and installation requirements.
The mortar and surrounding masonry must be given sufficient time to develop the necessary strength before the padstone is subjected to its full structural load.
Choosing the correct padstone
Padstone selection is a structural decision. The required dimensions depend on the beam reaction, available bearing length, masonry strength, wall construction and other project-specific factors.
PAD09 should only be installed where a qualified structural engineer or other suitably competent professional has specified or approved the 440mm x 215mm x 215mm size.
Do not substitute this product for a differently sized padstone without approval. Although a larger unit may appear stronger, changing its dimensions can affect the wall construction, bearing arrangement and how the structural load is transferred.
The padstone should be installed on sound supporting masonry, fully bedded on suitable mortar and positioned in the orientation shown on the structural plans. It should not be cut, drilled or altered unless this has been expressly approved as part of the design.
Colour, finish and size variations
The appearance of precast concrete can vary because cement and aggregates are derived from natural raw materials. Differences in production conditions, curing and material batches can lead to minor changes in colour, shade, surface texture and finish.
Please note: Colours and sizes may vary slightly due to the manufacturing process. Images are provided as a representative guide and the product supplied may not be visually identical.
Small air holes, surface marks and minor edge variations may be present on precast concrete products. These are generally a normal result of the production process, provided the unit remains within the manufacturer’s permitted tolerances and is structurally sound.
Padstones are structural building components rather than decorative products, so exact colour matching should not be expected.
Key benefits
- Manufactured from high-strength precast concrete
- Provides a substantial bearing for beams and lintels
- Helps spread concentrated loads through masonry
- Ready to install without casting concrete on site
- Suitable for residential and commercial projects
- Full 215mm depth for specified structural details
- Nominal dimensions of 440mm x 215mm x 215mm
- Commonly identified as PAD09
- Suitable for new-build and renovation work
The Concrete Padstone 440mm x 215mm x 215mm PAD09 provides a robust, ready-made structural bearing for demanding masonry applications. Before ordering, always confirm the correct padstone size and installation arrangement against the structural engineer’s calculations and drawings.
