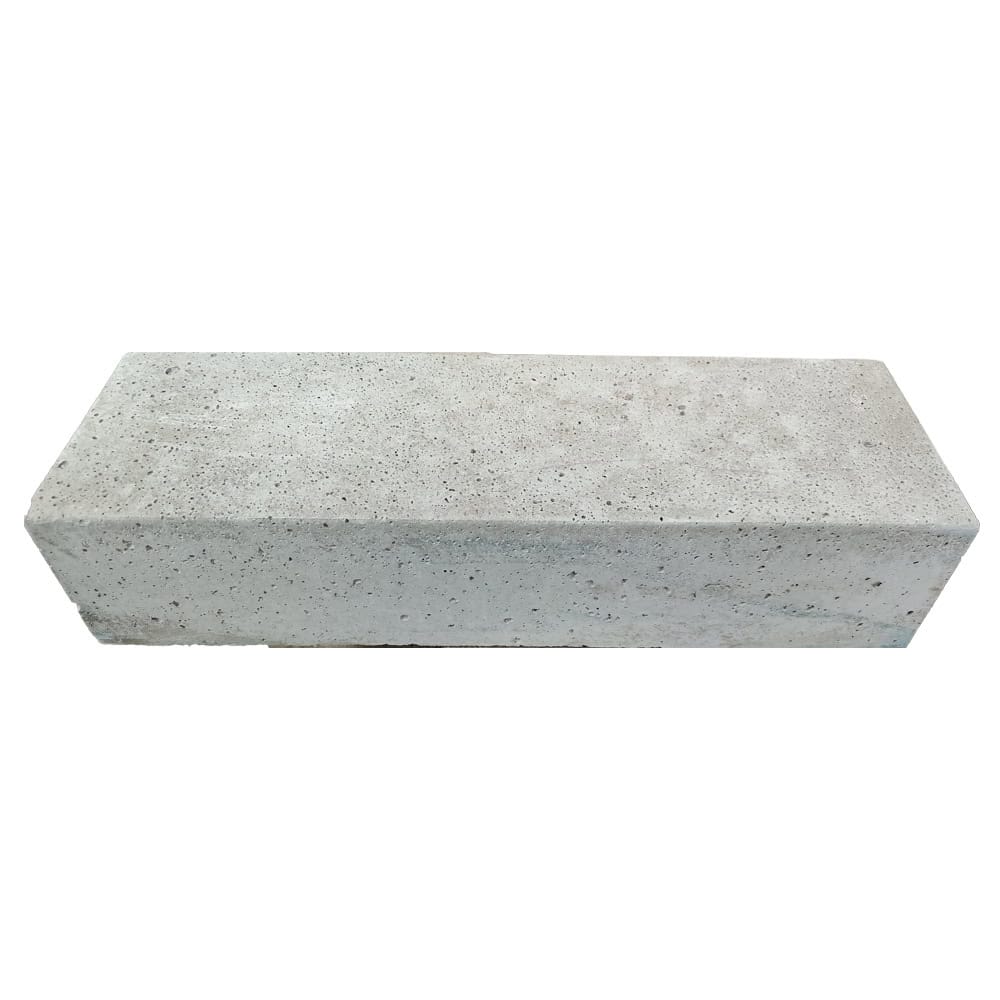

Concrete Padstone 440mm x 140mm x 102mm – PAD03
The Concrete Padstone 440mm x 140mm x 102mm, also known as PAD03, is a high-strength precast concrete component designed to provide a secure bearing beneath structural beams and lintels. It helps distribute concentrated loads over a wider area of the supporting brickwork or blockwork, reducing localised pressure on the masonry.
Structural beams can carry considerable weight from floors, roofs and walls. These loads are transferred through the ends of the beam into the structure below. Where standard bricks or blocks are not suitable for accepting this concentrated pressure directly, a purpose-manufactured concrete padstone may be specified.
The PAD03 measures 440mm long, 140mm wide and 102mm high. Its extended length and lower-profile design make it suitable for construction details requiring a substantial bearing area within a 140mm-wide masonry section.
What is a concrete padstone?
A concrete padstone is a dense, high-strength bearing block installed between a structural beam or lintel and its supporting masonry. Its purpose is to spread the imposed load across a greater area and transfer it more effectively into the wall below.
Unlike an ordinary building block, a padstone is manufactured specifically for structural bearing applications. It provides a level and dependable base on which the end of a suitable beam or lintel can rest.
Common applications include:
- Supporting structural steel beams
- Providing bearings for concrete lintels
- Supporting steel lintels where specified
- Forming new structural openings
- Load-bearing wall alterations
- Residential extensions and renovations
- New-build construction
- Commercial masonry projects
- Creating level structural bearing points
PAD03 dimensions
The nominal product dimensions are:
- Length: 440mm
- Width: 140mm
- Height: 102mm
- Product reference: PAD03
- Approximate imperial size: 18″ x 5½” x 4″
- Material: High-strength precast concrete
The 440mm length helps provide an extended load-distribution area. Its 140mm width can be incorporated into compatible masonry arrangements, while the 102mm height creates a lower-profile bearing than deeper padstone formats.
The dimensions alone do not confirm whether PAD03 is suitable for a particular project. The required size must be established through structural calculations and the approved construction design.
High-strength precast construction
PAD03 is manufactured from dense precast concrete to create a strong and durable structural component. Precast production takes place under controlled manufacturing conditions, helping provide greater consistency than a padstone mixed and poured on site.
The unit arrives ready to be incorporated into the masonry. This avoids the need to build shuttering, prepare an individual concrete mix and wait for an in-situ padstone to cure before continuing with the structural work.
Benefits of precast manufacture include:
- Consistent factory production
- No on-site concrete casting required
- No separate shuttering or formwork
- Reduced preparation and waiting time
- Defined dimensions for easier specification
- Strong and durable concrete construction
- Suitable for permanent masonry applications
Although the padstone is supplied as a cured precast product, the mortar and supporting masonry must still be given sufficient time to develop the required strength before the structural load is applied.
Selecting the correct padstone
Padstone selection should always form part of the structural design. The correct size depends on the beam reaction, bearing length, masonry strength, wall construction and the loads being supported.
PAD03 should only be used where a 440mm x 140mm x 102mm padstone has been specified or approved by a qualified structural engineer or another suitably competent professional.
A padstone should not be selected simply because its dimensions appear to fit the wall. Likewise, PAD03 should not be substituted for another padstone without approval, even if the alternative appears larger or stronger.
Always check the structural calculations and drawings before ordering. These documents should confirm the required padstone size, position, orientation and beam-bearing arrangement.
Installation guidance
The supporting brickwork or blockwork must be sound, stable and capable of carrying the transferred structural load. The padstone should be installed on a continuous bed of suitable mortar so that its entire base is supported.
Position the unit level and in the orientation shown on the approved structural drawings. The beam or lintel should have the specified end bearing and must sit correctly on the padstone.
Before installation, check the unit for severe cracks or damage that could affect its structural integrity. Do not install a damaged padstone without obtaining appropriate professional advice.
Avoid cutting, drilling or altering the product unless the modification has been approved by the structural engineer. Any unauthorised alteration could reduce the effective bearing area or compromise the padstone’s performance.
Colour, finish and size variations
Precast concrete is made from cement, water and naturally sourced aggregates. Differences in raw materials, production batches and curing conditions can affect the appearance of the finished unit.
Please note: Colours and sizes may vary slightly due to the manufacturing process. Product photographs are representative, and the item supplied may differ slightly in colour, texture or appearance.
Small air pockets, surface marks, minor edge irregularities and shade variations are common characteristics of precast concrete. These cosmetic differences do not necessarily indicate a product fault, provided the unit remains structurally sound and within the manufacturer’s permitted tolerances.
Padstones are functional structural components rather than decorative products. Exact colour matching between units should therefore not be expected.
Key benefits
- High-strength precast concrete construction
- Creates a stable bearing beneath beams and lintels
- Helps distribute concentrated loads through masonry
- Ready to install without on-site concrete casting
- Suitable for structural openings and wall alterations
- Nominal dimensions of 440mm x 140mm x 102mm
- Commonly identified as PAD03
- Extended 440mm bearing length
- Suitable for new-build and renovation projects
- Consistent factory-manufactured component
The Concrete Padstone 440mm x 140mm x 102mm PAD03 provides a strong and reliable bearing for specified structural applications. Always confirm the dimensions, position and installation requirements against the structural engineer’s calculations and drawings before ordering or fitting the product.
