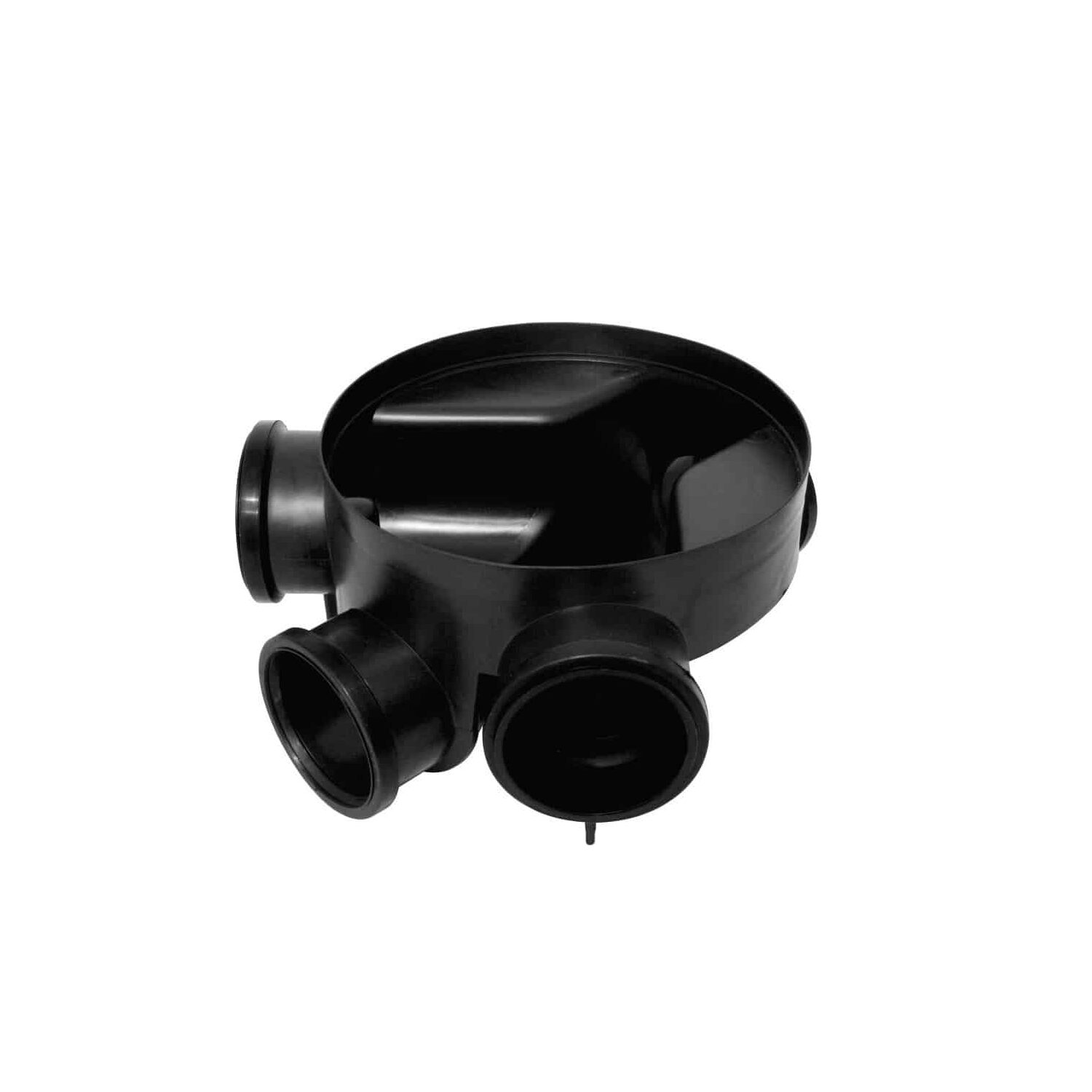

The UG Inspection Chamber Base 320mm x 110mm is designed to provide access to underground drainage systems for inspection, maintenance, and pipe connections. It forms the base component of an inspection chamber system and is used in conjunction with risers, covers, and frames to complete the installation.
Manufactured from durable plastic, the chamber base is suitable for below-ground drainage applications where resistance to moisture, ground conditions, and general wear is required. It is commonly used in domestic drainage systems and light-duty applications.
The base features one 110mm inlet and two 110mm side inlets, allowing for multiple pipe connections within the chamber. This configuration supports flexible drainage layouts and enables connections from different directions depending on site requirements. All inlets are compatible with standard UK 110mm drainage pipe systems, ensuring straightforward installation.
With a 320mm chamber diameter, the base provides a compact access point for inspection and maintenance. This size is typically used where space is limited or where a smaller chamber is sufficient for the drainage layout.
The chamber base is designed to be used with compatible inspection chamber risers to achieve the required depth. It can also be fitted with suitable covers and frames depending on load requirements, such as pedestrian areas.
For installation, the base should be set on a suitable foundation, such as a concrete bed or well-compacted granular base, to ensure stability and correct alignment. Pipe connections should be installed using standard drainage practices to maintain watertight joints and ensure proper system performance.
This inspection chamber base is suitable for use in foul and surface water drainage systems, providing access for routine inspection, clearing blockages, and general maintenance of underground pipework.
The UG Inspection Chamber Base 320mm x 110mm provides a practical and space-efficient solution for forming access points within underground drainage systems.
